E glass chopped strand mat

Update: 2022/6/27      View:
  • Brand:    CYS-CSM
  • Type:    100g,150g,225g,300g,450g,600g,900g
  • Price:     RMB
  • Promotion:     RMB ( 0 Customers Bought)
  • Order Online   Add to favorites
Introduction

Chopped Strand Mat

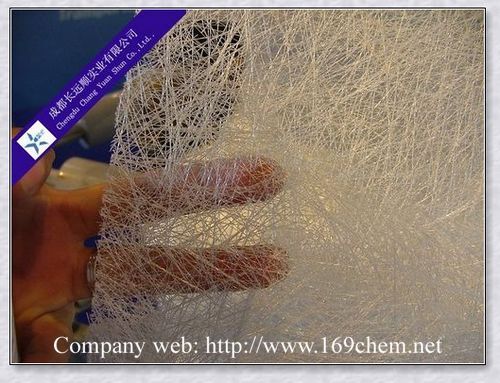

Chopped strand mat (csm) also called fiberglass mat is a kind of glass fiber non-woven reinforcing material by chopping continuous strands into chopped strands of certain length (50mm) and uniformly in combination with polyester binder in powder or in emulsion form. Normally chopped strand mat 300g and 450g are regular, but we also produce according to customer requirements. Both emulsion and powder mat, from 100g to 900g per square meter.

Chopped strand mat is suitable for application by hand lay-up, reinforce and machine FRP molding, such as interior decoration of vehicles, boat hulls, sanitary ware, anticorrosive pipes, tanks, building materials, tables, chairs and all kinds of composite FRP products.

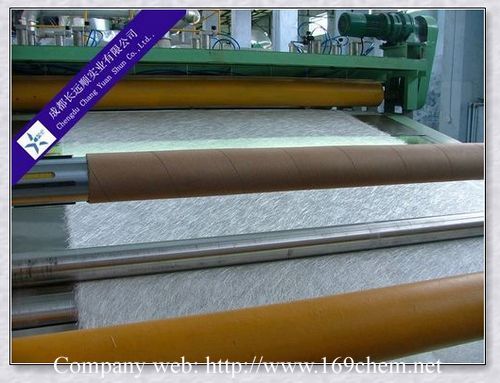

Our chopped strand mat factory specializes in manufacturing E-glass Chopped strand Mat (fiberglass chopped strand mat manufacturer). The products range from chopped strand mat 300g/m2, chopped strand mat 450g/m2 to chopped strand mat 600g/m2 and 900g, the width from 102cm,104cm,125cm to 320cm. The annual capacity can be than 10,000 tons a year. Better quality and lower price.




Product characteristics:

Even distributing; same character; good wet-out in resins; good overlay capability; excellent mechanical physical and chemical capability.

Product Parameter:

Product code

Glass type

Unite weight (g/m2)

Width(mm)

Roll weight (kg)

Moisture (%)

Binder content (%)

EMC100

E Glass

100+/-20

200-3200

30-70

<0.2-0.3

2-6

EMC150

E Glass

150+/-20

200-3200

30-70

<0.2-0.3

2-6

EMC200

E Glass

200+/-20

200-3200

30-70

<0.2-0.3

2-6

EMC300

E Glass

300+/-20

200-3200

30-70

<0.2-0.3

2-6

EMC450

E Glass

450+/-20

200-3200

30-70

<0.2-0.3

2-6

EMC600

E Glass

600+/-20

200-3200

30-70

<0.2-0.3

2-6

EMC900

E Glass

900+/-20

200-3200

30-70

<0.2-0.3

2-6


Packaging

Chopped Strand Mat is wound onto a paper tube which has an inside diameter of 80mm. The roll outside diameter is approximately 275mm. Each roll is wrapped up in plastic film and then packed in a carton. The rolls are stacked horizontally or vertically onto pallets. All pallets are stretch wrapped and strapped to maintain stability during transport.

Package height(mm)

Width+50

Package inside diameter (mm)

80

Package outside diameter(mm)

275

Package weight(kg)

20.8kg-45kg










Palletlength (mm)

1140

1400

Pallet width (mm)

1140

1140

Pallet height (mm)

Width+50

       Width+50













Storage

Chopped strand mat should be stored in its original packaging in a dry, cool and water-proof place. The recommended conditions are at temperatures from 15 to 35°C and humidity between 35 and 65%. To ensure safety and avoid damage to the product, the pallets should not be stacked more than three layers high, when the pallets are stacked in 2 or 3 layer, care should be taken to correctly and smoothly move the top pallet.
