产品特点：

无碱透明板材毡是由连续玻璃纤维原丝短切后，随机无定向分布，用粘结剂粘结而成的增强制品。

产品用途：

适用于手糊、模压、缠绕、机械等玻璃钢成型工艺，也可用于透明工艺品、洁具、厕板的加工制造。

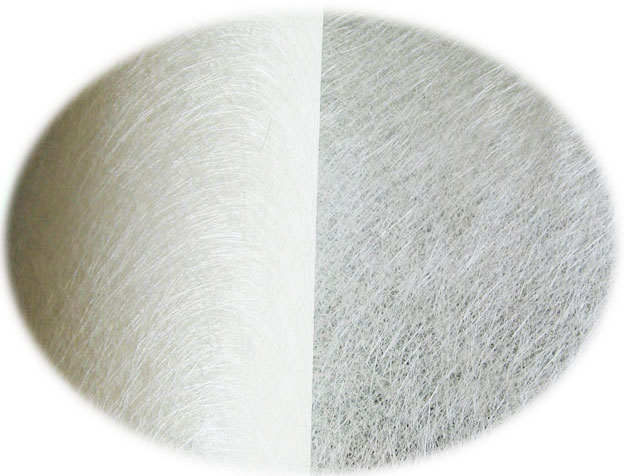

CYS-E-CSMT Chopped Strand Mat for Transparent Panel is made from Transparent E-glass chopped strands around 50mm in length, bonded together by powder or emulsion binder which is extremely soluble in styrene. The basic strand has a sizing system containing a silane coupling agent and specially designed with transparent property which gives the following products excellent performance in transparency.

The basic strands and the nature of the binder make E-CSMT suitable for hand lay-up, pultrusion, laminating compression molding, process, etc. Ideal for applications such as

transparent panels, tiles, parts.

Product Features

Good transparent

Excellent impregnation properties

Excellent conformability

Good mechanical properties

Good drapability

High tensile strength

Type of Glass	E
Unit weight (g/m2)	100~900
Width(mm)	200~3200
Binder	Powder, Emulsion







Technical Parameters

Unit weight	Width	Moisture content	LOI
<10%	±5mm	≤0.2%	2~4%

Packaging

Chopped Strand Mat is wound onto a paper tube which has an inside diameter of 80mm. The roll outside diameter is approximately 275mm. Each roll is wrapped up in plastic film and then packed in a carton. The rolls are stacked horizontally or vertically onto pallets. All pallets are stretch wrapped and strapped to maintain stability during transport.

Package height(mm)	Width+50
Package inside diameter (mm)	80
Package outside diameter(mm)	275
Package weight(kg)	20.8







Palletlength (mm)	1140	1400
Pallet width (mm)	1140	1140
Pallet height (mm)	Width+50	Width+50
